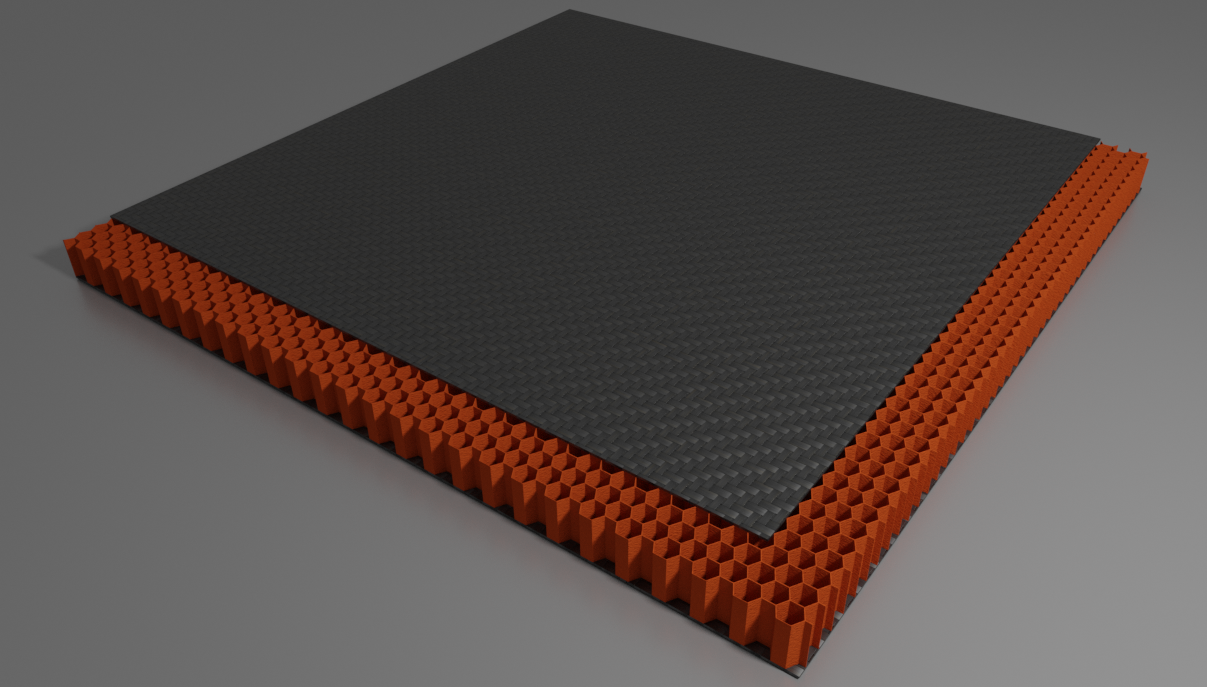

Carbon Fiber - Nomex Honeycomb Panel | 600x600x9mm

Our panels are manufactured in Europe from the finest prepregs. Each carbon fiber panel is cured under elevated pressure and temperature to achieve a pinhole-free, double-sided smooth finish and exceptional mechanical properties.

The panels are made from 100% carbon fiber fabric with no glass fiber fillers used.

Other dimensions available upon request

Features:

• Fiber orientation: 0°, 90°
• Material: Two layer of 220gr/sqm 2x2 Twill weave each side
• Core: 48kg/m3 Nomex honeycomb with 3.8mm cellsize
• Surface finish: smooth on both sides

• Resin: Epoxy
